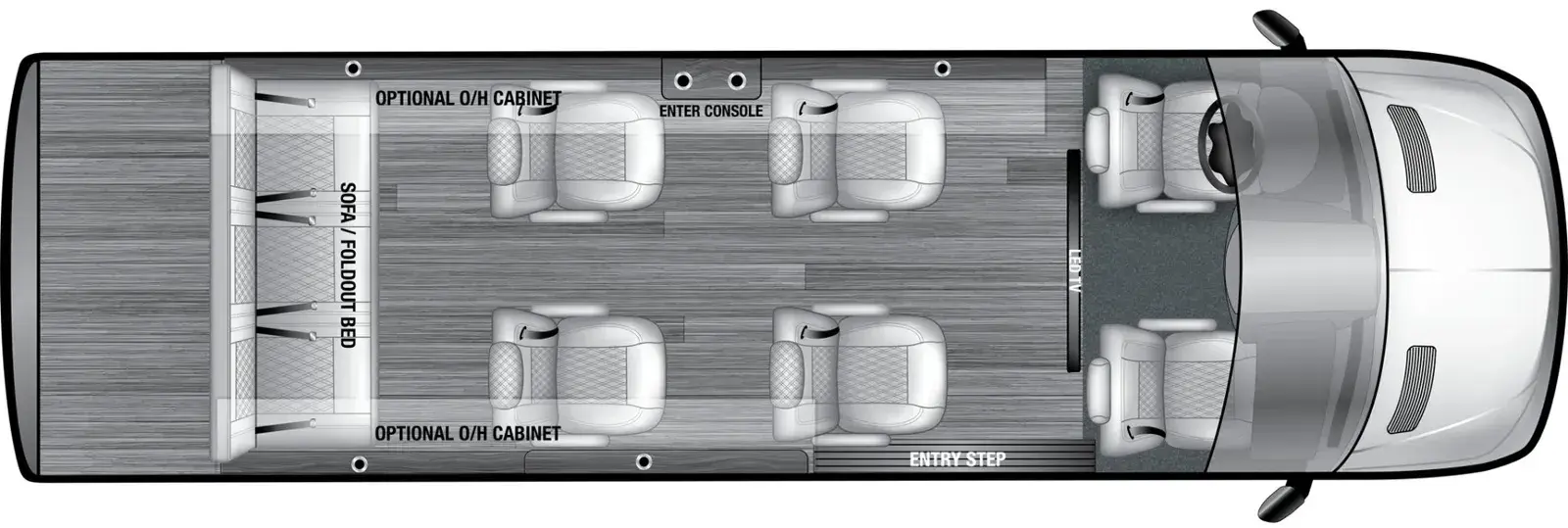

9RB7 Floorplan

Driver & Co-pilot, No Partition, 4 Captains Chairs with Rear Bench (9 Passenger)

9RB7
Wheelbase
170"
GVWR
11,030 lb.
GCWR
TBD
GAWR Front
4,410 lb.
GAWR Rear
7,720 lb.
Fuel Capacity
24 gal.
LP Tank Capacity
TBD
Exterior Length
24' 7"
Exterior Height
10' 1"
Exterior Width
96"
Fresh Water
TBD
Gray Water
TBD
Black Water
TBD
Awning Size
8' 2"
9RB7 A (AWD)
Wheelbase
170"
GVWR
11,030 lb.
GCWR
TBD
GAWR Front
4,410 lb.
GAWR Rear
7,720 lb.
Fuel Capacity
24 gal.
LP Tank Capacity
TBD
Exterior Length
24' 7"
Exterior Height
10' 1"
Exterior Width
96"
Fresh Water
TBD
Gray Water
TBD
Black Water
TBD
Awning Size
8' 2"

Specifications Definitions

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) – is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Note: Specifications are subject to change without notice.



  • Standard Chassis Features

    • <strong>PRODUCTIVITY/UTILITY:</strong>
    • Standard Radio (FM/AM Radio, LCD-Display, integrated USB-C Port, Bluetooth)
    • Keyless Start
    • USB-C Socket 5V
    • Rear View Camera (Rear-View Mirror Display)
    • Air Conditioning Front
    • Sliding Door, Passenger Side
    • Interior Lights, Cargo Compartment
    • Rear doors, Opening to Side Wall
    • Pre-wiring for Trailer Hitch
    • <strong>SAFETY/CONVENIENCE:</strong>
    • Load Adaptive Electronic Stability Program (ESP9i)
    • 4-Wheel Anti-Lock Braking System (ABS)
    • Dual-Circuit 4-Wheel Disc Brakes
    • Hill Start Assist
    • Crosswind Assist
    • Hold Function
    • Headlight Assistant
    • Airbags (Driver and Passenger)
    • Window Airbags (Driver and Passenger)
    • Thorax-Pelvis Side Airbags (Driver and Passenger)
    • Active Brake Assist
    • <strong>PERFORMANCE/CAPABILITY:</strong>
    • GVWR 11,030 LBS. (3500XD 170")
    • Pre-istallation PSM (Upfitter Gateway)
    • Axle Ratio 4.182
    • 24.5 Gallon Fuel Tank
    • 3rd Generation SCR Emission Control System (DEF)
    • AGM Battery 12V 92Ah
    • Body Builder Connector under Driver's Seat
    • Cruise Control
    • Multifunction Heated Steering Wheel
    • High Roof
    • <strong>MB FACTORY WARRANTY/MAINTENANCE:</strong>
    • 2-Year / up to 20,000 Mile Maintenance Interval
    • 3-Year/36,000-Mile New Vehicle Ltd. WTY
    • 5-Year/100,000-Mile Federal Diesel Emissions WTY
    • 5-Year/100,000-Mile Powertrain Limited WTY
    • <strong>SEE CHASSIS WINDOW STICKER FOR ADDITIONAL FACTORY SPECIFICATIONS & OPTIONAL EQUIPMENT, SUCH AS …</strong>
    • X86PKG Comfort Plus Package with Heated Steering Wheel
    • AS1PKG Drive Assist Package

  • Standard Exterior Features

    • Color Matched Bumpers and Side Moldings
    • Fiberglass Rocker Moldings with Integrated Steps
    • Trailer Cross-Member, Towing Capacity 5,000lbs
    • Audio Video HD Amplified Antenna
    • 30 AMP Shore Power w/cord
    • <strong>STANDARD EQUIPMENT:</strong>
    • 12V Aux. Air, 2000W Inverter, 270Ah Lithium Battery

  • Standard Interior Features

    • Automotive Grade Fabrics
    • Custom Seating w/Double Needle Diamond Stitching
    • Coordinated Door Panels and Interior Trim
    • Adjustable Captains Chairs
    • Child Seat Restraints Anchors on Rear Cabin Forward Facing Captains Chairs
    • 2 Captains Chairs w/Power Leg Lifts (9RB7, 7RB4)
    • Soft Touch Wall Panels
    • Custom Woodwork
    • Wall Consoles with Cup Holders, USB, USB-C Charge Ports & 110V Outlets
    • 3 Folding Lap Trays (9RB7), 1 Folding Lap Tray (7RB4)
    • Window Valances w/Indirect Lighting
    • Carpeted Floor Mats Throughout Cabin
    • Wireless Internet Router & Apple TV
    • Backlit LED Ceiling Panel
    • Smart HDTV
    • Dark Ceramic UVI Tinted Side and Rear Windows
    • Complete Privacy Window Shade Package
    • Full Radiant Thermal Barrier Insulation Package
    • Interior Sound Dampening Mat Throughout
    • 12V Rear Cabin Auxiliary HVAC System (Engine Driven)
    • Garmin Integrated Touchscreen Control System
    • JL Audio Rear Entertainment System
    • 270Ah Lithium Auxiliary House Battery
    • 2,000 Watt Inverter w/Charge Controller Power System
    • 2 - 110V Dual Outlets
    • Flooring: Charwood by Shaw, Countertop: Cosmos Black

  • Optional Exterior Features

    • Partial Paint
    • Custom Full Body Paint
    • <strong>MERCEDES-BENZ RV SUSPENSION BUNDLE (RV1) w/ENHANCEMENT:</strong>
    • Reinforced front axle, Vehicle version for high load, stabilization Level III,
    • Raised rear body mounts, Timbren-2WD, Sumo Springs-AWD
    • <strong>AIR-RIDE SUSPENSION PACKAGE:</strong>
    • VB Rear Air-Ride Suspension Upgrade,
    • <strong>AWNING PACKAGE:</strong>
    • Power Awning with Built In LED Lighting and Seismic Sensor
    • <strong>RUGGED ROOF APPEARANCE PACKAGE:</strong>
    • Custom Aluminum Powder Coated Roof Rack with Access Ladder
    • Front and Rear Spoiler
    • <strong>WHEELS & TIRES:</strong>
    • Black Wheels w/All Season Tires (170"EXT)
    • Black Wheels w/All Terrain Tires (170"EXT)
    • Chrome Wheels w/All Season Tires (170"EXT)
    • Chrome Wheels w/All Terrain Tires (170"EXT)

  • Optional Interior Features

    • Seat Heat and/or Massage on All Captain Chairs
    • Starlink High Performance Internet System
    • Starlink Prep.
    • 4 Camera With Quad View Display
    • RGBW Accent Lights
    • Front Center Console With Ice Chest & Cup Holders
    • Slide Drawer Refrigerator
    • Pedestal Table with Two Mounting Bases
    • Overhead Storage Cabinets
    • Tailgate Prep Kit (HDMI / 110V Outlet)
    • Tailgate Entertainment Package: 50" Smart HDTV w/JL Audio & Fusion Head Unit
    • Sport Luggage Compartment (9RBY): 40" Storage Compartment w/shelf, clothes hangers, 2 drawer storage box w/logo deck lid & shoe net
