VTOUR 170

Built for adventure camping on a Mercedes-Benz 170” wheelbase sprinter van. VTOUR models offer a full wet bath, microwave, cooktop and rugged exterior accessories. These luxury adventure vans are complete with handcrafted seating, advanced climate control, superior sound insulation and state-of-the-art entertainment options. #VTOUR

Follow VTOUR 170 on Social Media:

2027 VTOUR 170 Floorplans

Mercedes 170" WB (AWD Option)

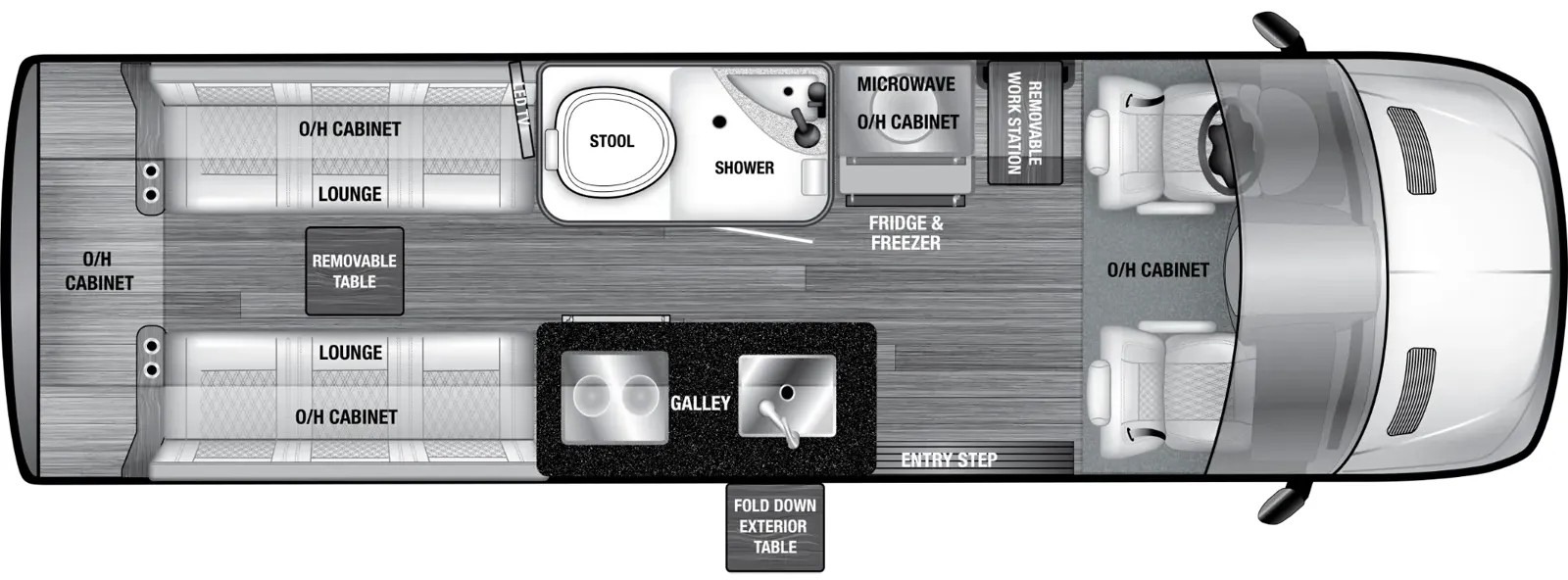

2TB

360

GVWR:	Fuel Type:	Fuel Capacity:	Ext. Length:	View More
11,030 lb	Diesel	24 gal	24' 7"	View More

MSRP Starting At: $224,993 USD*

* MSRP is based on a Standard Built Coach (base price), excluding tax, license, registration, freight, additional options, Dealer Prep & Fees.

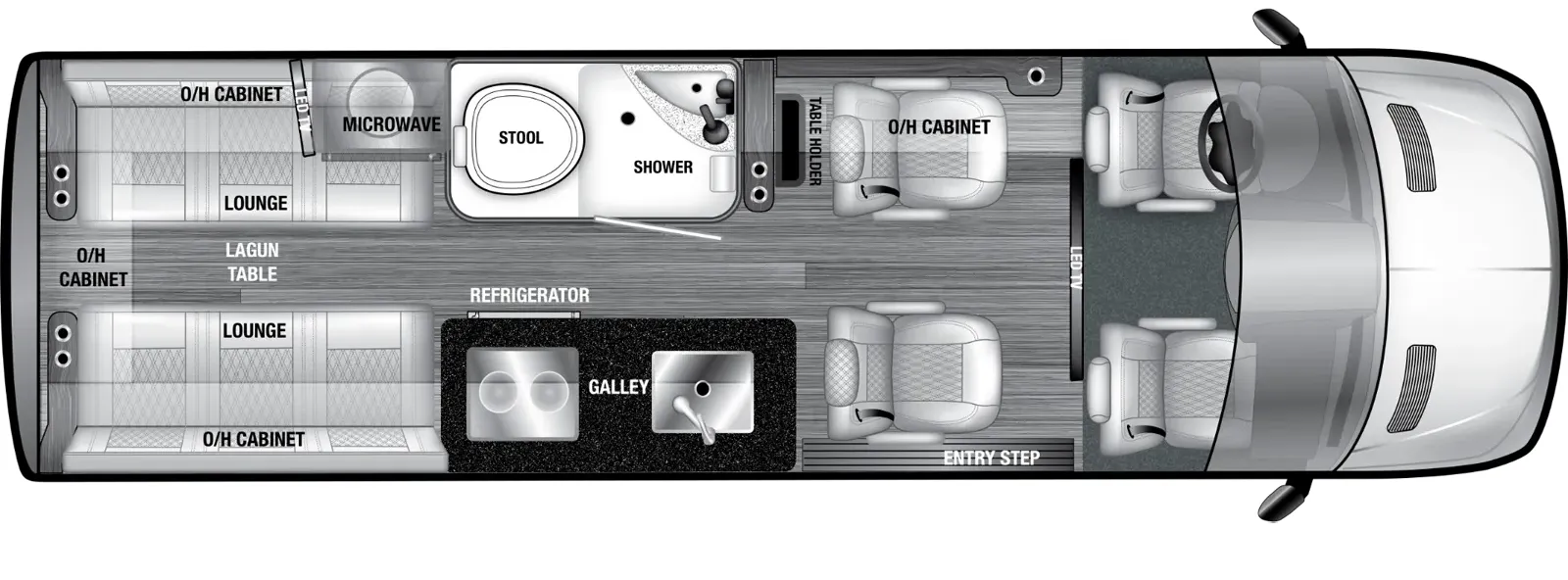

4TB

GVWR:	Fuel Type:	Fuel Capacity:	Ext. Length:	View More
11,030 lb	Diesel	24 gal	24' 7"	View More

MSRP Starting At: $224,993 USD*

* MSRP is based on a Standard Built Coach (base price), excluding tax, license, registration, freight, additional options, Dealer Prep & Fees.

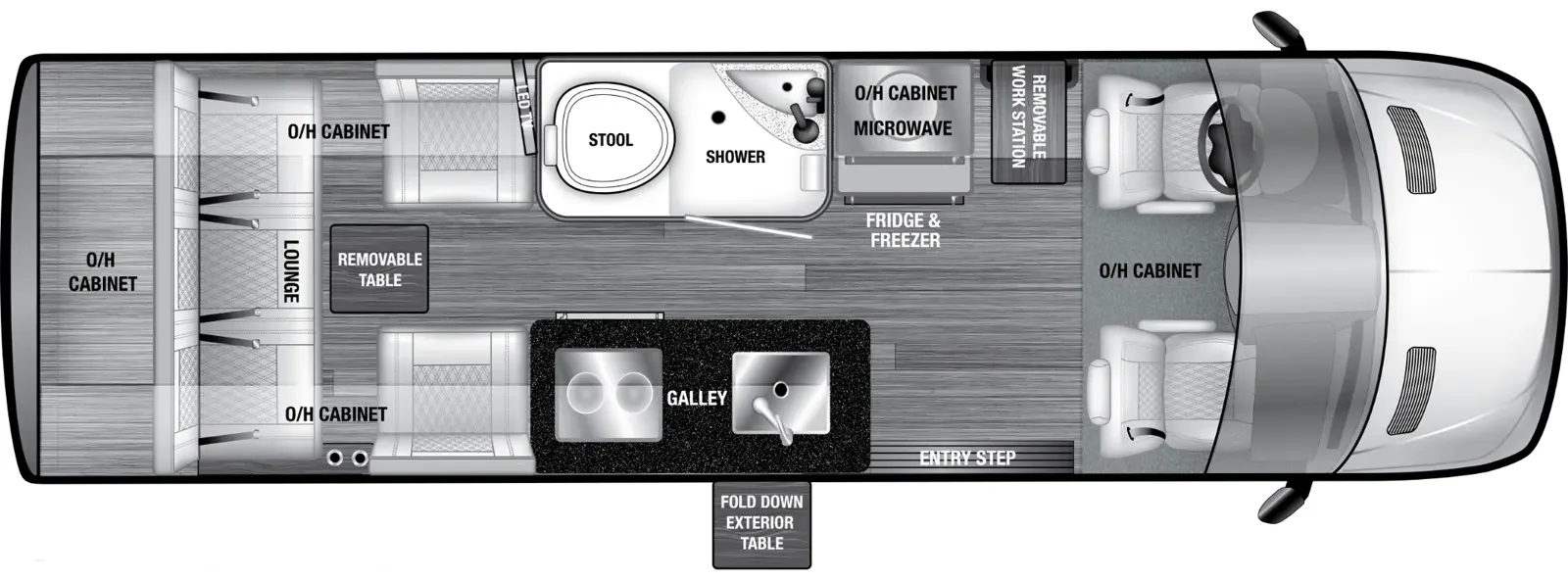

5RL

GVWR:	Fuel Type:	Fuel Capacity:	Ext. Length:	View More
TBD	Diesel	24 gal	24' 7"	View More

MSRP Starting At: $224,993 USD*

* MSRP is based on a Standard Built Coach (base price), excluding tax, license, registration, freight, additional options, Dealer Prep & Fees.

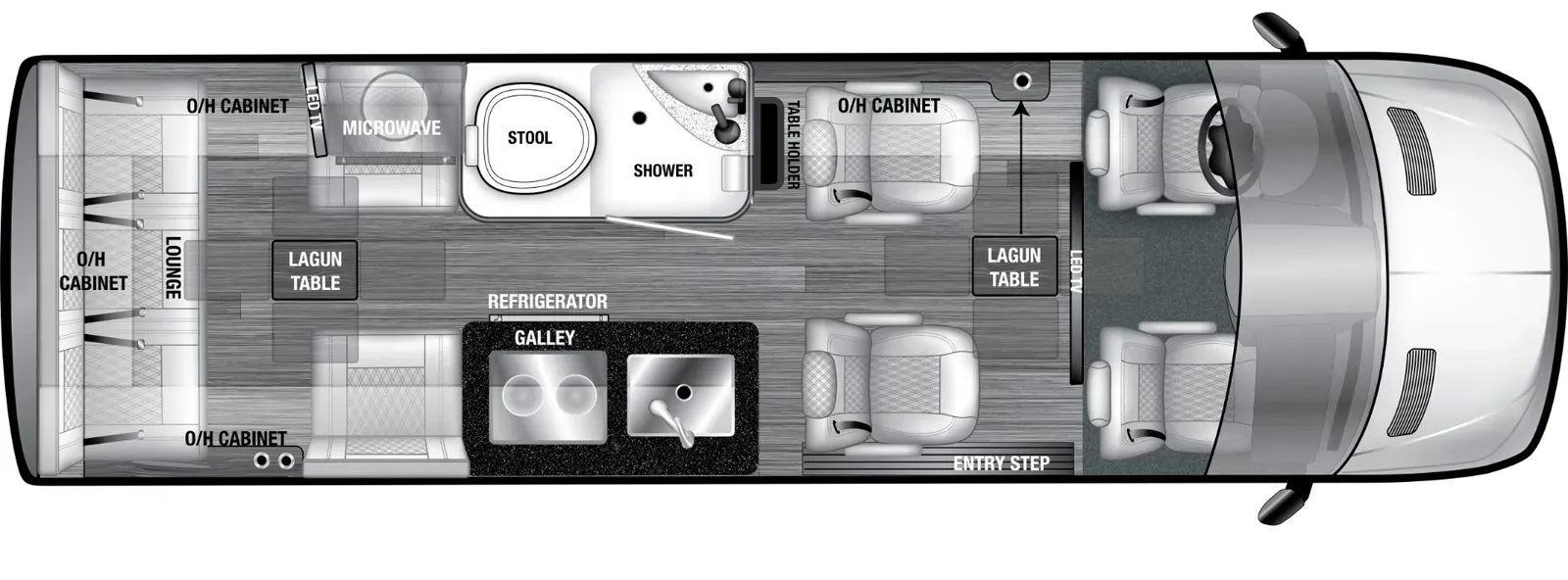

7RL

360

GVWR:	Fuel Type:	Fuel Capacity:	Ext. Length:	View More
TBD	Diesel	24 gal	24' 7"	View More

MSRP Starting At: $224,993 USD*

* MSRP is based on a Standard Built Coach (base price), excluding tax, license, registration, freight, additional options, Dealer Prep & Fees.

GVWR (Gross Vehicle Weight Rating): – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) - Is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) - is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by each axle.

UVW (Unloaded Vehicle Weight)* - is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s), including full fuel, all fl uids and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, passengers, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before fi lling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

2027 VTOUR 170 Features & Options

PRODUCTIVITY/UTILITY:
- Standard Radio (FM/AM Radio, LCD-Display, integrated USB-C Port, Bluetooth)
- Keyless Start
- USB-C Socket 5V
- Rear View Camera (Rear-View Mirror Display)
- Air Conditioning Front
- Sliding Door, Passenger Side
- Interior Lights, Cargo Compartment
- Rear doors, Opening to Side Wall
- Pre-wiring for Trailer Hitch
SAFETY/CONVENIENCE:
- Load Adaptive Electronic Stability Program (ESP9i)
- 4-Wheel Anti-Lock Braking System (ABS)
- Dual-Circuit 4-Wheel Disc Brakes
- Hill Start Assist
- Crosswind Assist
- Hold Function
- Headlight Assistant
- Airbags (Driver and Passenger)
- Window Airbags (Driver and Passenger)
- Thorax-Pelvis Side Airbags (Driver and Passenger)
- Active Brake Assist
PERFORMANCE/CAPABILITY:
- GVWR 11,030 LBS. (3500XD 170")
- Pre-istallation PSM (Upfitter Gateway)
- Axle Ratio 4.182
- 24.5 Gallon Fuel Tank
- 3rd Generation SCR Emission Control System (DEF)
- AGM Battery 12V 92Ah
- Body Builder Connector under Driver's Seat
- Cruise Control
- Multifunction Heated Steering Wheel
- High Roof
MB FACTORY WARRANTY/MAINTENANCE:
- 2-Year / up to 20,000 Mile Maintenance Interval
- 3-Year/36,000-Mile New Vehicle Ltd. WTY
- 5-Year/100,000-Mile Federal Diesel Emissions WTY
- 5-Year/100,000-Mile Powertrain Limited WTY
SEE CHASSIS WINDOW STICKER FOR ADDITIONAL FACTORY SPECIFICATIONS & OPTIONAL EQUIPMENT, SUCH AS…
- X86PKG Comfort Plus Package with Heated Steering Wheel
- AS1PKG Drive Assist Package
- MB Factory Roof Rails (AWD Chassis)
- Trailer Cross-Member, Towing Capacity 5,000lbs
- Painted Fiberglass Running Board
- All-In-One Utility Bay
- Color-Matched Painted A/C Shroud and Awning
- Audio Video Amplified Antenna
- 30A Shore Power, Dual 110V Outlet, Tank Fill & Rinse
- and Outdoor Shower
- 12 Gal. Black Tank
- 29 Gal. Gray Tank
- 25 Gal. Fresh Water Tank
- Tank Heater
- 2 - Slider Windows (Rear Location)
- Dual Solar Controllers
540 ANYWHERE PACKAGE (STANDARD):
- 3000W Inverter
- 540Ah Lithium Batteries
- 340W Solar Package
- Charge Controller
- 110V Rooftop A/C w/Heat Strip
- High Output Heater Auxiliary Diesel Air/Water Heater
AWNING PACKAGE: (INCLUDED AS STANDARD)
- Power Awning with Built In LED Lighting
- Porch Light w/ Additional Switch at Rear

- Automotive Grade Soft Touch Fabrics
- Custom Seating w/Double Needle Stitched Inserts
- Coordinated Door Panels And Interior Trim
- 2 Adjustable Captains Chairs (7RL, 4TB)
- Soft Touch Wall Panels
- Custom Woodwork & Cabinet Package
- Wall Consoles With Cup Holders, USB, USB-C Charge Ports & 110V Outlets
- 2 Lagun Table Mounts w/Table
- Power Folding Rear Sofa Bed (5RL, 7RL) w/ Additional Switch at Rear
- Twin Rear Beds (2TB, 4TB)
- Front Cabin Privacy Window Shade Package
- Wet Bath w/Shower, Toilet, Sink & Bath Fan
- Luggage Shelf
- Solid Surface Countertops
- Stainless Steel Sink
- Microwave
- Garmin - Touchscreen Control System, 1 Primary Touchscreen and 1 Secondary
- Clothes Hangers
- 1 - Smart HDTV (5RL, 2TB)
- 2 - Smart HDTV's (7RL, 4TB, 10RK)
- Dark Ceramic UVI Tinted Side And Rear Windows
- Complete Privacy Window Shade Package
- Full Radiant Thermal Barrier Insulation Package
- Interior Sound Dampening Pkg. Throughout
- Tankless On Demand Hot Water Heater & Coach Furnace Combo
- Overhead Courtesy & Floor Lighting
- Smoke, Propane & Carbon Monoxide Detectors
- Fire Extinguisher
- Electronic Ventilation Fan
- 12V Refrigerator/Freezer
- Carpeted Floor Mats Throughout Cabin
- Portable Induction Cooktop
- Rear Door Quick Connect Outdoor Shower Hookup
- Rear Secondary Switch for Power Sofa
- Rear Porch Light Switch
- Cup Holders
- Starlink Mini Internet System
- Apple TV
- Running Board w/ Utility Bay
- Power Hose Reel
- Macerator
- 4 Camera w/ Quad View Display
RUGGED APPEARANCE PACKAGE:
- Custom Aluminum Powder Coated Roof Rack with Ladder
- Rear Tire Carrier w/ Matching Spare
- Deletes Color-Matched Painted A/C Shroud and Awning
1080 ANYWHERE PACKAGE (OPTIONAL):
- 3000W Inverter
- 1080Ah Lithium
- 340W Solar Package
- Dual Alternator w/Charge Controller
- 110V Rooftop A/C w/Heat Strip
- High Output Heater Auxiliary Diesel Air/Water Heater
AIR-RIDE SUSPENSION PACKAGE:
- VB Rear Air-ride Suspension Upgrade
MONOCHROMATIC PAINT UPGRADE
- Painted Front Spoiler
- Rear Bumper w/ Hitch Cover
- Painted Side Cladding
- All-in-One Utility Bay
- Color-Matched Painted A/C Shroud and Awning
WHEELS & TIRES:
- 16" Polished Aluminum Wheels, OEM Tires (STD.)
- 16" Black Aluminum Wheels, OEM Tires
- 16" Polished Aluminum Wheels, A/T Tires
- 16" Black Aluminum Wheels, A/T Tires
